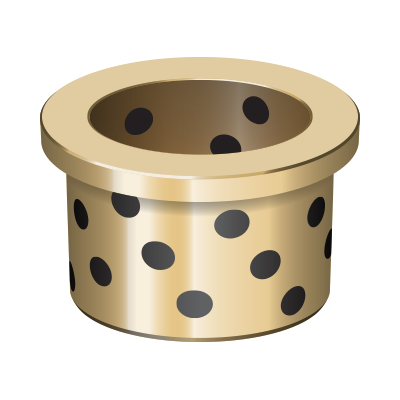

About Bowman Oilless Flanged Bearings
Bowman Oilless® bearings are developed for high-load, low-speed applications and are made from rotational cast high-strength bronze with specially formed graphite plugs as the lubricant.
Our WMO range of flanged bearings is available in both metric and imperial sizes. Our in-house machining service can also produce non-standard sizes to suit specific customer requirements.
Bowman Oilless Bearings USA customers can rely on this range for demanding industrial applications. Whether you need to buy Bowman Oilless Bearings North America or are looking for an industrial Bowman Oilless supplier in US, Bowman can support your requirements.
For more information about Bowman Oilless flanged bearings USA, including available sizes and custom options, contact Bowman.
Matching Bearings
| Material | Unit Measurement | Part Number | Inner Diameter | Outer Diameter | Length | Tolerance Range | Action Button |
|---|---|---|---|---|---|---|---|
| Bowman Oilless® Bearings | Metric | WMOF 10 14 15 - 22 X 2 | 10 | 14 | 15 | ||
| Bowman Oilless® Bearings | Metric | WMOF 10 14 20 - 22 X 2 | 10 | 14 | 20 | ||
| Bowman Oilless® Bearings | Metric | WMOF 12 18 15 - 25 X 3 | 12 | 18 | 15 | ||
| Bowman Oilless® Bearings | Metric | WMOF 12 18 20 - 25 X 3 | 12 | 18 | 20 | ||
| Bowman Oilless® Bearings | Metric | WMOF 13 19 15 - 26 X 3 | 13 | 19 | 15 | ||
| Bowman Oilless® Bearings | Metric | WMOF 13 19 20 - 26 X 3 | 13 | 19 | 20 | ||
| Bowman Oilless® Bearings | Metric | WMOF 14 20 15 - 27 X 3 | 14 | 20 | 15 | ||
| Bowman Oilless® Bearings | Metric | WMOF 14 20 20 - 26 X 3 B | 14 | 20 | 20 | ||
| Bowman Oilless® Bearings | Metric | WMOF 15 21 15 - 28 X 3 | 15 | 21 | 15 | ||
| Bowman Oilless® Bearings | Metric | WMOF 15 21 20 - 28 X 3 | 15 | 21 | 20 | ||
| Bowman Oilless® Bearings | Metric | WMOF 15 21 25 - 28 X 3 | 15 | 21 | 25 | ||
| Bowman Oilless® Bearings | Metric | WMOF 15 21 30 - 28 X 3 | 15 | 21 | 30 | ||
| Bowman Oilless® Bearings | Metric | WMOF 16 22 15 - 29 X 3 | 16 | 22 | 15 | ||
| Bowman Oilless® Bearings | Metric | WMOF 16 22 20 - 29 X 3 | 16 | 22 | 20 | ||
| Bowman Oilless® Bearings | Metric | WMOF 16 22 25 - 29 X 3 | 16 | 22 | 25 | ||
| Bowman Oilless® Bearings | Metric | WMOF 16 22 30 - 29 X 3 | 16 | 22 | 30 | ||
| Bowman Oilless® Bearings | Metric | WMOF 20 30 15 - 40 X 5 | 20 | 30 | 15 | ||
| Bowman Oilless® Bearings | Metric | WMOF 20 30 20 - 40 X 5 | 20 | 30 | 20 | ||
| Bowman Oilless® Bearings | Metric | WMOF 20 30 25 - 40 X 5 B | 20 | 30 | 25 | ||
| Bowman Oilless® Bearings | Metric | WMOF 20 30 30 - 40 X 5 | 20 | 30 | 30 | ||
| Bowman Oilless® Bearings | Metric | WMOF 20 30 40 - 40 X 5 | 20 | 30 | 40 | ||
| Bowman Oilless® Bearings | Metric | WMOF 25 35 15 - 45 X 5 | 25 | 35 | 15 | ||
| Bowman Oilless® Bearings | Metric | WMOF 25 35 20 - 45 X 5 | 25 | 35 | 20 | ||
| Bowman Oilless® Bearings | Metric | WMOF 25 35 25 | 25 | 35 | 25 | ||
| Bowman Oilless® Bearings | Metric | WMOF 25 35 30 - 45 X 5 | 25 | 35 | 30 | ||
| Bowman Oilless® Bearings | Metric | WMOF 25 35 40 - 45 X 5 | 25 | 35 | 40 | ||
| Bowman Oilless® Bearings | Metric | WMOF 30 40 20 - 50 X 5 | 30 | 40 | 20 | ||
| Bowman Oilless® Bearings | Metric | WMOF 30 40 25 - 50 X 5 | 30 | 40 | 25 | ||
| Bowman Oilless® Bearings | Metric | WMOF 30 40 30 - 50 X 5 | 30 | 40 | 30 | ||
| Bowman Oilless® Bearings | Metric | WMOF 30 40 35 - 50 X 5 | 30 | 40 | 35 | ||
| Bowman Oilless® Bearings | Metric | WMOF 30 40 40 - 50 X 5 | 30 | 40 | 40 | ||
| Bowman Oilless® Bearings | Metric | WMOF 30 40 50 - 50 X 5 | 30 | 40 | 50 | ||
| Bowman Oilless® Bearings | Metric | WMOF 31.5 40 20 - 50 X 5 | 31.5 | 40 | 20 | ||
| Bowman Oilless® Bearings | Metric | WMOF 31.5 40 35 - 50 X 5 | 31.5 | 40 | 35 | ||
| Bowman Oilless® Bearings | Metric | WMOF 35 45 20 - 60 X 5 | 35 | 45 | 20 | ||
| Bowman Oilless® Bearings | Metric | WMOF 35 45 30 - 60 X 5 B | 35 | 45 | 30 | ||
| Bowman Oilless® Bearings | Metric | WMOF 35 45 40 - 60 X 5 | 35 | 45 | 40 | ||
| Bowman Oilless® Bearings | Metric | WMOF 35 45 50 - 60 X 5 | 35 | 45 | 50 | ||
| Bowman Oilless® Bearings | Metric | WMOF 40 50 20 - 65 X 5 | 40 | 50 | 20 | ||
| Bowman Oilless® Bearings | Metric | WMOF 40 50 30 - 65 X 5 | 40 | 50 | 30 | ||
| Bowman Oilless® Bearings | Metric | WMOF 40 50 40 | 40 | 50 | 40 | ||
| Bowman Oilless® Bearings | Metric | WMOF 40 50 50 - 65 X 5 | 40 | 50 | 50 | ||
| Bowman Oilless® Bearings | Metric | WMOF 45 55 30 - 70 X 5 | 45 | 55 | 30 | ||
| Bowman Oilless® Bearings | Metric | WMOF 45 55 40 - 70 X 5 | 45 | 55 | 40 | ||
| Bowman Oilless® Bearings | Metric | WMOF 45 55 50 - 70 X 5 | 45 | 55 | 50 | ||
| Bowman Oilless® Bearings | Metric | WMOF 45 55 60 - 70 X 5 | 45 | 55 | 60 | ||
| Bowman Oilless® Bearings | Metric | WMOF 50 60 30 - 75 X 5 | 50 | 60 | 30 | ||
| Bowman Oilless® Bearings | Metric | WMOF 50 60 40 - 75 X 5 | 50 | 60 | 40 | ||
| Bowman Oilless® Bearings | Metric | WMOF 50 60 50 - 75 X 5 | 50 | 60 | 50 | ||
| Bowman Oilless® Bearings | Metric | WMOF 50 60 60 | 50 | 60 | 60 | ||
| Bowman Oilless® Bearings | Metric | WMOF 55 65 40 - 80 X 5 | 55 | 65 | 40 | ||
| Bowman Oilless® Bearings | Metric | WMOF 55 65 60 - 80 X 5 | 55 | 65 | 60 | ||
| Bowman Oilless® Bearings | Metric | WMOF 60 75 40 - 85 X 7.5 | 60 | 75 | 40 | ||
| Bowman Oilless® Bearings | Metric | WMOF 60 75 50 - 85 X 7.5 | 60 | 75 | 50 | ||
| Bowman Oilless® Bearings | Metric | WMOF 60 75 80 - 85 X 7.5 | 60 | 75 | 80 | ||
| Bowman Oilless® Bearings | Metric | WMOF 63 75 67.5 - 90 X 7.5 | 63 | 75 | 67.5 | ||
| Bowman Oilless® Bearings | Metric | WMOF 70 85 50 - 105 X 7.5 | 70 | 85 | 50 | ||
| Bowman Oilless® Bearings | Metric | WMOF 70 85 80 - 105 X 7.5 | 70 | 85 | 80 | ||
| Bowman Oilless® Bearings | Metric | WMOF 75 90 60 - 105 X 7.5 | 75 | 90 | 60 | ||
| Bowman Oilless® Bearings | Metric | WMOF 80 100 100 - 120 X 10 | 80 | 100 | 100 | ||
| Bowman Oilless® Bearings | Metric | WMOF 80 100 60 - 120 X 10 | 80 | 100 | 60 | ||
| Bowman Oilless® Bearings | Metric | WMOF 80 100 80 - 120 X 10 | 80 | 100 | 80 | ||
| Bowman Oilless® Bearings | Metric | WMOF 90 110 60 - 130 X 10 | 90 | 110 | 60 | ||
| Bowman Oilless® Bearings | Metric | WMOF 90 110 80 - 130 X 10 | 90 | 110 | 80 | ||
| Bowman Oilless® Bearings | Metric | WMOF 100 120 100 - 150 X 10 | 100 | 120 | 100 | ||
| Bowman Oilless® Bearings | Metric | WMOF 100 120 70 - 150 X 10 | 100 | 120 | 70 | ||
| Bowman Oilless® Bearings | Metric | WMOF 100 120 80 - 150 X 10 | 100 | 120 | 80 | ||
| Bowman Oilless® Bearings | Metric | WMOF 120 140 100 - 170 X 10 | 120 | 140 | 100 | ||
| Bowman Oilless® Bearings | Metric | WMOF 120 140 80 - 170 X 10 | 120 | 140 | 80 | ||
| Bowman Oilless® Bearings | Metric | WMOF 12 18 15 - 25 X 4 P | 12 | 18 | 15 | ||
| Bowman Oilless® Bearings | Metric | WMOF 16 22 20 - 30 X 5 P | 16 | 22 | 20 | ||
| Bowman Oilless® Bearings | Metric | WMOF 20 28 25 - 36 X 5 P | 20 | 28 | 25 | ||
| Bowman Oilless® Bearings | Metric | WMOF 25 33 30 - 43 X 5 P | 25 | 33 | 30 | ||
| Bowman Oilless® Bearings | Metric | WMOF 30 38 35 - 48 X 5 P | 30 | 38 | 35 | ||
| Bowman Oilless® Bearings | Metric | WMOF 40 50 45 - 60 X 5 P | 40 | 50 | 45 | ||
| Bowman Oilless® Bearings | Metric | WMOF 50 62 55 - 75 X 6 P | 50 | 62 | 55 | ||
| Bowman Oilless® Bearings | Metric | WMOF 60 75 65 - 90 X 7 P | 60 | 75 | 65 |
Frequently Asked Questions
What is a Bowman Oilless flanged bearing?
A Bowman Oilless flanged bearing is designed for high-load, low-speed applications. The WMO range is made from rotational cast high-strength bronze with specially formed graphite plugs that provide lubrication.
How does graphite plug lubrication work?
The specially formed graphite plugs act as the lubricant within the bearing. This allows Bowman Oilless bearings to provide lubrication for high-load, low-speed applications.
What loads can these bearings handle?
Bowman Oilless flanged bearings are developed for high-load applications. The actual load capacity depends on the bearing size and operating conditions. Contact Bowman to discuss your specific requirements.
What sizes are available?
WMO flanged bearings are available in both metric and imperial sizes. Non-standard sizes can also be produced through our in-house machining service to suit specific customer requirements.
How do I request a quote?
Provide the required dimensions, quantity, and application details when requesting a quote. Bowman can support customers looking for Bowman Oilless Bearings USA and those looking to buy Bowman Oilless Bearings North America. As an industrial Bowman Oilless supplier in US, Bowman can also advise on suitable options.
