BOWMET BEARINGS: THE MOST SIGNIFICANT ADVANCEMENT IN PLAIN BEARING TECHNOLOGY IN OVER 70 YEARS
Bowman’s BowMet bronze bearings represent one of the most significant advancements in plain bearing technology, delivering exceptional strength, durability, and reliability for the world’s most demanding applications. Manufactured using proprietary ToughMet plain bearing alloy from Materion, USA, BowMet® bearings provide outstanding resistance to wear, heat, corrosion, and shock loading while offering one of the industry’s highest high load capacity plain bearing solutions.
As a trusted spinodal bronze bearing manufacturer and BowMet plain bearing distributor, Bowman supplies precision-engineered bearings designed to outperform conventional bronze, steel, and composite bearings in extreme operating conditions. Their superior mechanical properties make them ideal high performance bronze bushings for mining, marine, heavy construction, oil & gas, material handling, and other heavy industrial applications where reliability is critical. BowMet® bearings maintain excellent performance under heavy loads, high speeds, and harsh environments, reducing maintenance requirements and extending equipment life.
Whether you require a heavy duty bronze bushing in the USA or are looking for a dependable mining bronze bearing supplier, Bowman delivers world-class bearing solutions backed by decades of engineering expertise and global technical support.
BowMet® Specifications
| Structure | Toughmet ® spinodal bronze with optional lubrication holes/indentations |
|---|---|
| Max PV – Dry (N/mm² x m/s) | 0.6 |
| Max PV – Oiled (N/mm² x m/s) | 9.6 |
| Max Static load (N/mm²) | 820 |
| Max Dynamic load (N/mm²) | 340 |
| Max Sliding speed – Dry (m/s) | 3 |
| Max Sliding speed – With Oil (m/s) | 10 |
| Operating temperature (°C) | -250 to 300 |
| Thermal Conductivity (W/mk) | 38 |
| Coefficient of thermal expansion | 16.4 x 10-6/°C |
| Coefficient of friction – Dry | 0.25 |
| Coefficient of friction – With Oil | 0.04 |
| Recommended shaft finish (Ra) | 0.4 max (N5) |
| Recommended shaft hardness (HRC) | 60 |
| Hardness (HRC) | 30 min |
| Ultimate Tensile strength (N/mm²) | 860 |
| Yield strength (N/mm²) | 725 |
| Elongation (%) | 10 |
| Elastic modulus (N/mm²) | 144000 |

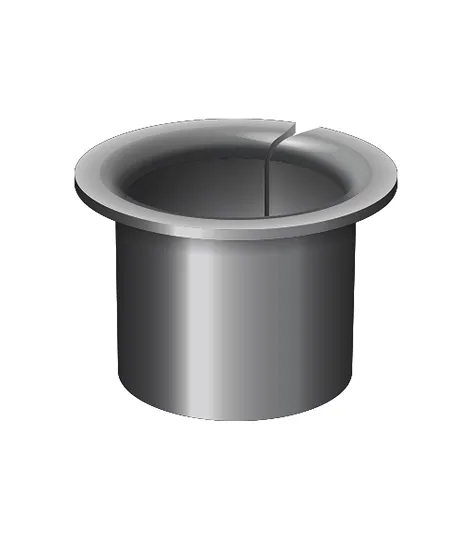

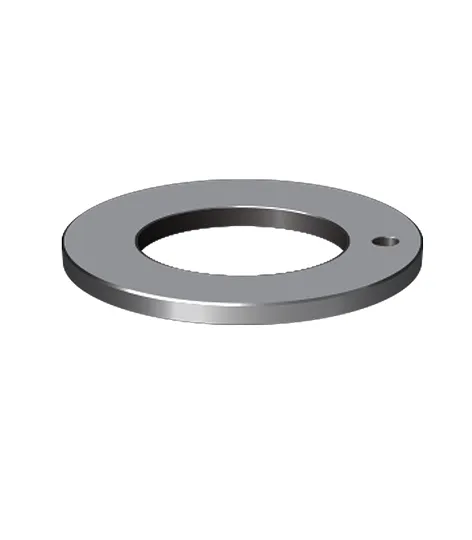

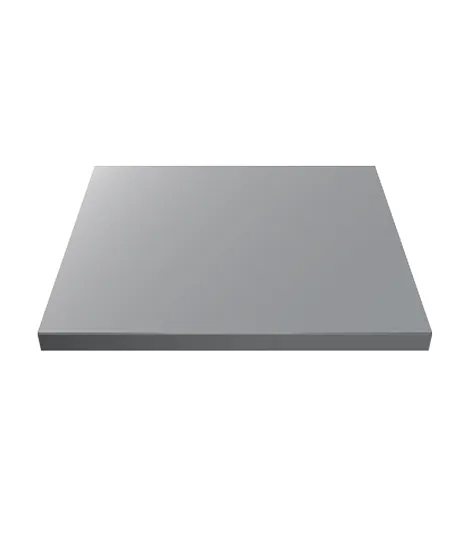

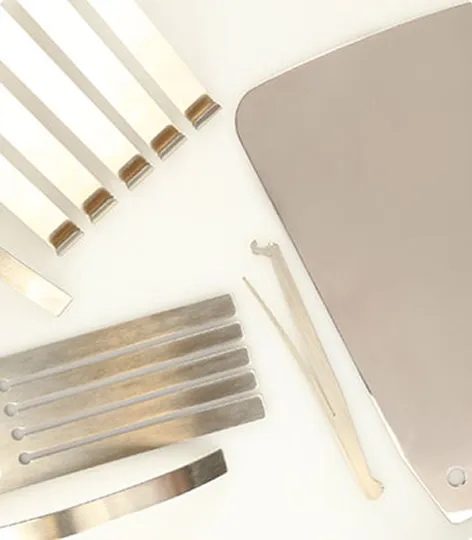

Discover the BowMet® Series
Select a product below to view dimensions, specifications and technical data.
Explore the Arvis Plain Bearings range with detailed product information and downloadable PDF resources.

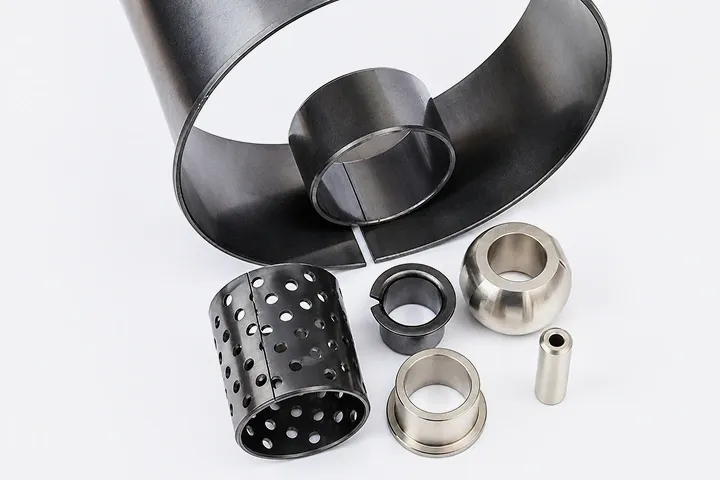

The Key Strengths of the BowMet® Bearings
Bowman's BowMet bronze bearings are engineered for the most demanding industrial environments where conventional plain bearings reach their limits. Manufactured using advanced ToughMet® alloy, these high-performance bearings deliver exceptional strength, wear resistance, and durability while offering one of the industry's highest high load capacity plain bearing solutions. Their unique material properties provide outstanding resistance to corrosion, shock loading, elevated temperatures, and high operating speeds, making them the preferred choice for critical applications. As a trusted spinodal bronze bearing manufacturer, Bowman supplies precision-engineered bearings for mining, marine, heavy construction, oil & gas, and industrial equipment. Whether you require a high performance bronze bushing for heavy-duty machinery or a reliable solution for extreme operating conditions, BowMet® bearings are designed to maximise equipment life, minimise maintenance, and improve operational reliability.
Next-level Toughness
Manufactured from advanced ToughMet® alloys, ensuring exceptional strength, wear and resistance.

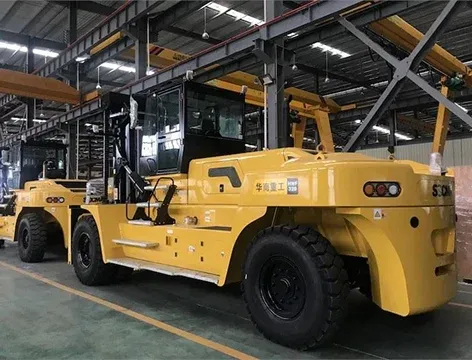

Ultimate Load Capacity
Engineered to endure extreme loads, maintaining stability under intense pressure conditions.

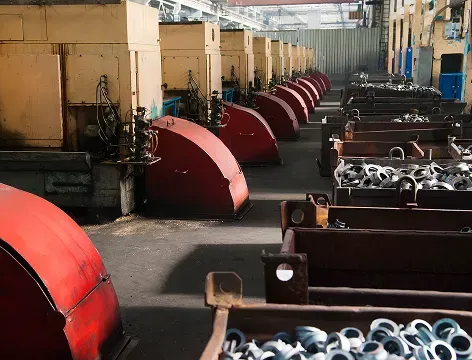

Reduced Cost & Waste
As a wrapped bearing, it uses far less material than solid machining, reducing waste and lowering cost.
Fast Performance
Low-friction properties enable swift, smooth motion for enhanced operational efficiency.

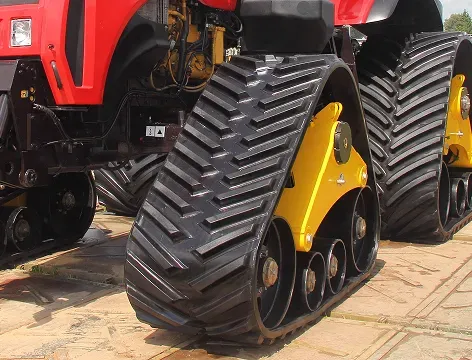

Suitable for Various Industries
Ideal for mining, marine, aerospace, and heavy industrial machinery.
Reduced Downtime
Corrosion resistance and extended service life minimize maintenance interruptions.
Frequently Asked Questions
What are Bowman BowMet® Bronze Bearings?
BowMet bronze bearings are premium heavy-duty plain bearings manufactured using advanced ToughMet® alloy from Materion, USA. Engineered for exceptional strength, wear resistance, and durability, they deliver one of the industry's highest high load capacity plain bearing solutions. Designed to withstand extreme loads, high operating speeds, elevated temperatures, and corrosive environments, BowMet® bearings provide reliable performance where conventional bronze and composite bearings may not be suitable.
Which industries use BowMet® Bronze Bearings?
BowMet® bearings are widely used in mining, marine, heavy construction, oil & gas, material handling, steel production, defence, and other demanding industrial sectors. Their outstanding mechanical properties make them an ideal high performance bronze bushing for applications exposed to heavy loads, shock loading, abrasive conditions, and corrosive environments. Bowman is also a trusted mining bronze bearing supplier for heavy-duty OEM and maintenance applications.
Can I get BowMet® Bronze Bearings customised to my specification?
Yes. As an experienced spinodal bronze bearing manufacturer, Bowman offers bespoke BowMet® bearing solutions tailored to your application's exact requirements. We manufacture custom dimensions, tolerances, bearing geometries, and application-specific configurations to ensure optimal performance in even the most demanding operating conditions.
Which materials and sizes are available for BowMet® Bronze Bearings?
BowMet® bearings are manufactured using proprietary ToughMet® alloy and are available in a wide range of standard metric and imperial sizes. We also offer custom-engineered solutions for specialist applications requiring unique dimensions, load capacities, or operating characteristics. As a trusted BowMet plain bearing distributor, Bowman provides both standard and bespoke products to meet diverse engineering requirements.
How do I request a quote for BowMet® Bronze Bearings?
To request a quotation, simply contact Bowman with your bearing dimensions, operating conditions, load requirements, speed, and application details. Whether you require a heavy duty bronze bushing in the USA, a standard BowMet® bearing, or a fully customised solution, our engineering team will recommend the most suitable bearing for your application.
