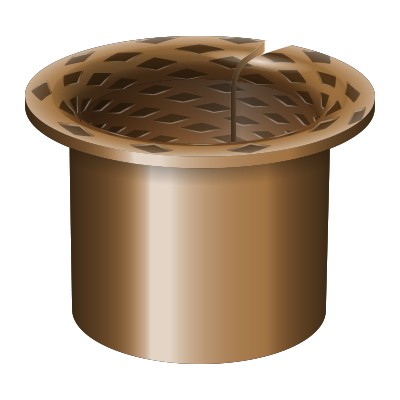

Bronze Wrapped Flanged Bearings From Bowman
These bronze bearings have been developed to for slow speed, high load applications, especially suited for oscillating motion and are perfect for the construction, mining/quarrying, agriculture and automotive industries.
Our WMB range of flanged bearings are available in metric sizes only. Our in-house machining service is able to produce non-standard sizes to suit customer specific requirements.
Matching Bearings
| Material | Unit Measurement | Part Number | Inner Diameter | Outer Diameter | Length | Sureface Style | Tolerance Range | Action Button |
|---|---|---|---|---|---|---|---|---|
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 20 23 16 - 30 X 1.5 | 20 | 23 | 16 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 20 23 20 - 30 X 1.5 | 20 | 23 | 20 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 24 27 25 - 34 X 1.5 | 24 | 27 | 25 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 25 28 15 - 35 X 1.5 | 25 | 28 | 15 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 25 28 16 - 35 X 1.5 | 25 | 28 | 16 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 25 28 20 - 35 X 1.5 | 25 | 28 | 20 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 25 28 25 - 35 X 1.5 | 25 | 28 | 25 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 25 28 30 - 35 X 1.5 | 25 | 28 | 30 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 30 34 20 - 45 X 2 | 30 | 34 | 20 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 30 34 30 - 45 X 2 | 30 | 34 | 30 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 30 34 35 - 45 X 2 | 30 | 34 | 35 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 35 39 20 - 50 X 2 | 35 | 40 | 20 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 35 39 25 - 50 X 2 | 35 | 40 | 25 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 35 39 30 - 50 X 2 | 35 | 40 | 30 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 35 39 35 - 50 X 2 | 35 | 40 | 35 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 40 44 10 - 55 X 2 | 40 | 45 | 10 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 40 44 25 - 55 X 2 STD | 40 | 45 | 25 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 40 44 30 - 55 X 2 | 40 | 45 | 30 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 40 44 35 - 55 X 2 | 40 | 45 | 35 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 40 44 40 - 53 X 2 | 40 | 45 | 40 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 40 44 40 - 55 X 2 | 40 | 45 | 40 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 45 50 30 - 60 X 2.5 | 45 | 50 | 30 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 45 50 35 - 60 X 2.5 | 45 | 50 | 35 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 45 50 40 - 60 X 2.5 | 45 | 50 | 40 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 45 50 45 - 60 X 2.5 | 45 | 50 | 45 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 45 50 50 - 60 X 2.5 | 45 | 50 | 50 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 50 55 100 - 65 X 2.5 | 50 | 55 | 100 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 50 55 30 - 65 X 2.5 | 50 | 55 | 30 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 50 55 35 - 65 X 2.5 | 50 | 55 | 35 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 50 40 65 | 50 | 55 | 40 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 50 55 50 - 65 X 2.5 | 50 | 55 | 50 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 55 60 30 - 70 X 2.5 | 55 | 60 | 30 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 55 60 35 - 70 X 2.5 | 55 | 60 | 35 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 55 60 40 - 70 X 2.5 | 55 | 60 | 40 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 55 60 50 - 70 X 2.5 | 55 | 60 | 50 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 60 65 30 - 75 X 2.5 | 60 | 65 | 30 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 60 65 35 - 75 X 2.5 | 60 | 65 | 35 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 60 65 40 - 75 X 2.5 | 60 | 65 | 40 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 60 65 50 - 75 X 2.5 | 60 | 65 | 50 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 60 65 60 - 75 X 2.5 | 60 | 65 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 65 70 30 - 80 X 2.5 | 65 | 70 | 30 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 65 70 35 - 80 X 2.5 | 65 | 70 | 35 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 65 70 40 - 80 X 2.5 | 65 | 70 | 40 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 65 70 50 - 80 X 2.5 | 65 | 70 | 50 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 65 70 60 - 80 X 2.5 | 65 | 70 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 70 75 25 - 85 X 2.5 | 70 | 75 | 25 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 70 75 35 - 85 X 2.5 | 70 | 75 | 35 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 70 75 40 - 85 X 2.5 | 70 | 75 | 40 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 70 75 50 - 85 X 2.5 | 70 | 75 | 50 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 70 75 60 - 85 X 2.5 | 70 | 75 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 70 75 70 - 85 X 2.5 | 70 | 75 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 75 80 35 - 90 X 2.5 | 75 | 80 | 35 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 75 80 40 - 90 X 2.5 | 75 | 80 | 40 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 75 80 50 - 90 X 2.5 | 75 | 80 | 50 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 75 80 60 - 90 X 2.5 | 75 | 80 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 75 80 70 - 90 X 2.5 | 75 | 80 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 80 85 40 - 100 X 2.5 | 80 | 85 | 40 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 80 85 50 - 100 X 2.5 | 80 | 85 | 50 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 80 85 80 - 100 X 2.5 | 80 | 85 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 85 90 40 - 105 X 2.5 | 85 | 90 | 40 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 90 95 50 - 110 X 2.5 | 90 | 95 | 50 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 90 95 60 - 110 X 2.5 | 90 | 95 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 90 95 70 - 110 X 2.5 | 90 | 95 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 90 95 80 - 110 X 2.5 | 90 | 95 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 90 95 90 - 110 X 2.5 | 90 | 95 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 100 105 40 - 120 X 2.5 | 100 | 105 | 40 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 100 105 50 - 120 X 2.5 | 100 | 105 | 50 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 100 105 60 - 120 X 2.5 | 100 | 105 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 100 105 70 - 120 X 2.5 | 100 | 105 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 100 105 80 - 120 X 2.5 | 100 | 105 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 100 105 90 - 120 X 2.5 | 100 | 105 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 110 115 90 - 130 X 2.5 | 100 | 105 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 110 115 60 - 130 X 2.5 | 110 | 115 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 110 115 70 - 130 X 2.5 | 110 | 115 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 110 115 80 - 130 X 2.5 | 110 | 115 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 120 125 50 - 140 X 2.5 | 120 | 125 | 50 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 120 125 50 - 145 X 2.5 | 120 | 125 | 50 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 120 125 70 - 140 X 2.5 | 120 | 125 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 120 125 80 - 140 X 2.5 | 120 | 125 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 120 125 90 - 140 X 2.5 | 120 | 125 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 130 135 60 - 155 X 2.5 | 130 | 135 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 130 135 70 - 155 X 2.5 | 130 | 135 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 130 135 80 - 155 X 2.5 | 130 | 135 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 130 135 90 - 155 X 2.5 | 130 | 135 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 140 145 60 - 165 X 2.5 | 140 | 145 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 140 145 70 - 165 X 2.5 | 140 | 145 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 140 145 80 - 165 X 2.5 | 140 | 145 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 140 145 90 - 165 X 2.5 | 140 | 145 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 150 155 50 - 180 X 2.5 | 150 | 155 | 50 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 150 155 60 - 180 X 2.5 | 150 | 155 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 150 155 70 - 180 X 2.5 | 150 | 155 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 150 155 80 - 180 X 2.5 | 150 | 155 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 150 155 90 - 180 X 2.5 | 150 | 155 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 160 165 60 - 190 X 2.5 | 160 | 165 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 160 165 70 - 190 X 2.5 | 160 | 165 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 160 165 80 - 190 X 2.5 | 160 | 165 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 160 165 90 - 190 X 2.5 | 160 | 165 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 170 175 60 - 200 X 2.5 | 170 | 175 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 170 175 70 - 200 X 2.5 | 170 | 175 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 170 175 80 - 200 X 2.5 | 170 | 175 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 170 175 90 - 200 X 2.5 | 170 | 175 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 180 185 60 - 215 X 2.5 | 180 | 185 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 180 185 70 - 215 X 2.5 | 180 | 185 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 180 185 80 - 215 X 2.5 | 180 | 185 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 180 185 90 - 215 X 2.5 | 180 | 185 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 190 195 60 - 225 X 2.5 | 190 | 195 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 190 195 70 - 225 X 2.5 | 190 | 195 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 190 195 80 - 225 X 2.5 | 190 | 195 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 190 195 90 - 225 X 2.5 | 190 | 195 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 200 205 60 - 235 X 2.5 | 200 | 205 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 200 205 70 - 235 X 2.5 | 200 | 205 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 200 205 80 - 235 X 2.5 | 200 | 205 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 200 205 90 - 235 X 2.5 | 200 | 205 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 225 230 60 - 260 X 2.5 | 225 | 230 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 225 230 70 - 260 X 2.5 | 225 | 230 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 225 230 80 - 260 X 2.5 | 225 | 230 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 225 230 90 - 260 X 2.5 | 225 | 230 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 250 255 50 - 290 X 2.5 | 250 | 255 | 50 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 250 255 60 - 290 X 2.5 | 250 | 255 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 250 255 70 - 290 X 2.5 | 250 | 255 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 250 255 80 - 290 X 2.5 | 250 | 255 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 250 255 90 - 290 X 2.5 | 250 | 255 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 265 270 60 - 305 X 2.5 | 265 | 270 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 265 270 70 - 305 X 2.5 | 265 | 270 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 265 270 80 - 305 X 2.5 | 265 | 270 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 265 270 90 - 305 X 2.5 | 265 | 270 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 285 290 60 - 325 X 2.5 | 285 | 290 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 285 290 70 - 325 X 2.5 | 285 | 290 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 285 290 80 - 325 X 2.5 | 285 | 290 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 285 290 90 - 325 X 2.5 | 285 | 290 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 300 305 60 - 340 X 2.5 | 300 | 305 | 60 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 300 305 70 - 340 X 2.5 | 300 | 305 | 70 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 300 305 80 - 340 X 2.5 | 300 | 305 | 80 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 300 305 90 - 340 X 2.5 | 300 | 305 | 90 | Diamond Indentations | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 20 23 16 - 30 X 1.5 H | 20 | 23 | 16 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 20 23 20 - 30 X 1.5 H | 20 | 23 | 20 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 25 28 15 - 35 X 1.5 H | 25 | 28 | 15 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 25 28 16 - 35 X 1.5 H | 25 | 28 | 16 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 25 28 25 - 35 X 1.5 H | 25 | 28 | 35 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 30 34 20 - 45 X 2 H | 30 | 34 | 20 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 30 34 25 - 45 X 2 H | 30 | 34 | 25 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 30 34 30 - 45 X 2 H | 30 | 34 | 30 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 30 34 35 - 45 X 2 H | 30 | 34 | 35 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 35 39 20 - 50 X 2 H | 35 | 40 | 20 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 35 39 25 - 50 X 2 H | 35 | 40 | 25 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 35 39 30 - 50 X 2 H | 35 | 40 | 30 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 35 39 35 - 50 X 2 H | 35 | 40 | 35 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 40 44 30 - 55 X 2 H | 40 | 45 | 30 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 40 44 35 - 55 X 2 H | 40 | 45 | 35 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 40 40 55 H | 40 | 45 | 40 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 45 50 30 - 60 X 2.5 H | 45 | 50 | 30 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 45 50 35 - 60 X 2.5 H | 45 | 50 | 35 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 45 50 40 - 60 X 2.5 H | 45 | 50 | 40 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 45 50 45 - 60 X 2.5 H | 45 | 50 | 45 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 45 50 50 - 60 X 2.5 H | 45 | 50 | 50 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 50 55 30 - 65 X 2.5 H | 50 | 55 | 30 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 50 55 35 - 65 X 2.5 H | 50 | 55 | 35 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 50 55 40 - 65 X 2.5 H | 50 | 55 | 40 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 50 55 50 - 65 X 2.5 H | 50 | 55 | 50 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 55 60 30 - 70 X 2.5 H | 55 | 60 | 30 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 55 60 35 - 70 X 2.5 H | 55 | 60 | 35 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 55 60 40 - 70 X 2.5 H | 55 | 60 | 40 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 55 60 50 - 70 X 2.5 H | 55 | 60 | 50 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 60 65 30 - 75 X 2.5 H | 60 | 65 | 30 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 60 65 35 - 75 X 2.5 H | 60 | 65 | 35 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 60 65 40 - 75 X 2.5 H | 60 | 65 | 40 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 60 65 50 - 75 X 2.5 H | 60 | 65 | 50 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 60 65 60 - 75 X 2.5 H | 60 | 65 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 65 70 35 - 80 X 2.5 H | 65 | 70 | 35 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 65 70 50 - 80 X 2.5 H | 65 | 70 | 50 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 65 70 60 - 80 X 2.5 H | 65 | 70 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 70 75 35 - 85 X 2.5 H | 70 | 75 | 35 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 70 75 50 - 85 X 2.5 H | 70 | 75 | 50 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 70 75 60 - 85 X 2.5 H | 70 | 75 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 70 75 70 - 85 X 2.5 H | 70 | 75 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 75 80 35 - 90 X 2.5 H | 75 | 80 | 35 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 75 80 50 - 90 X 2.5 H | 75 | 80 | 50 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 75 80 60 - 90 X 2.5 H | 75 | 80 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 75 70 90 H | 75 | 80 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 80 85 40 - 100 X 2.5 H | 80 | 85 | 40 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 80 85 50 - 100 X 2.5 H | 80 | 85 | 50 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 80 85 70 - 100 X 2.5 H | 80 | 85 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 80 85 80 - 100 X 2.5 H | 80 | 85 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 85 90 40 - 105 X 2.5 H | 85 | 90 | 40 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 90 95 60 - 110 X 2.5 H | 90 | 95 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 90 95 70 - 110 X 2.5 H | 90 | 95 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 90 95 80 - 110 X 2.5 H | 90 | 95 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 90 95 90 - 110 X 2.5 H | 90 | 95 | 90 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 100 105 40 - 120 X 2.5 H | 100 | 105 | 40 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 100 105 50 - 120 X 2.5 H | 100 | 105 | 50 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 100 105 60 - 120 X 2.5 H | 100 | 105 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 100 105 70 - 120 X 2.5 H | 100 | 105 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 100 105 80 - 120 X 2.5 H | 100 | 105 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 100 105 90 - 120 X 2.5 H | 100 | 105 | 90 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 110 115 50 - 130 X 2.5 H | 110 | 115 | 50 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 110 115 60 - 130 X 2.5 H | 110 | 115 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 110 115 70 - 130 X 2.5 H | 110 | 115 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 110 115 80 - 130 X 2.5 H | 110 | 115 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 110 115 90 - 130 X 2.5 H | 110 | 115 | 90 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 120 125 50 - 140 X 2.5 H | 120 | 125 | 50 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 120 125 70 - 140 X 2.5 H | 120 | 125 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 120 125 80 - 140 X 2.5 H | 120 | 125 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 120 125 90 - 140 X 2.5 H | 120 | 125 | 90 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 130 135 70 - 155 X 2.5 H | 130 | 135 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 130 135 80 - 155 X 2.5 H | 130 | 135 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 130 135 90 - 155 X 2.5 H | 130 | 135 | 90 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 140 145 60 - 165 X 2.5 H | 140 | 145 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 140 145 70 - 165 X 2.5 H | 140 | 145 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 140 145 80 - 165 X 2.5 H | 140 | 145 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 140 145 90 - 165 X 2.5 H | 140 | 145 | 90 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 150 155 50 - 180 X 2.5 H | 150 | 155 | 50 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 150 155 60 - 180 X 2.5 H | 150 | 155 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 150 155 70 - 180 X 2.5 H | 150 | 155 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 150 155 80 - 180 X 2.5 H | 150 | 155 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 150 155 90 - 180 X 2.5 H | 150 | 155 | 90 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 160 165 60 - 190 X 2.5 H | 160 | 165 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 160 165 70 - 190 X 2.5 H | 160 | 165 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 160 165 80 - 190 X 2.5 H | 160 | 165 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 160 165 90 - 190 X 2.5 H | 160 | 165 | 90 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 170 175 60 - 200 X 2.5 H | 170 | 175 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 170 175 70 - 200 X 2.5 H | 170 | 175 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 170 175 80 - 200 X 2.5 H | 170 | 175 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 170 175 90 - 200 X 2.5 H | 170 | 175 | 90 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 180 185 60 - 215 X 2.5 H | 180 | 185 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 180 185 70 - 215 X 2.5 H | 180 | 185 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 180 185 80 - 215 X 2.5 H | 180 | 185 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 180 185 90 - 215 X 2.5 H | 180 | 185 | 90 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 190 195 60 - 225 X 2.5 H | 190 | 195 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 190 195 70 - 225 X 2.5 H | 190 | 195 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 190 195 80 - 225 X 2.5 H | 190 | 195 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 190 195 90 - 225 X 2.5 H | 190 | 195 | 90 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 200 205 60 - 235 X 2.5 H | 200 | 205 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 200 205 70 - 235 X 2.5 H | 200 | 205 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 200 205 80 - 235 X 2.5 H | 200 | 205 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 200 205 90 - 235 X 2.5 H | 200 | 205 | 90 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 225 230 60 - 260 X 2.5 H | 225 | 230 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 225 230 70 - 260 X 2.5 H | 225 | 230 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 225 230 80 - 260 X 2.5 H | 225 | 230 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 225 230 90 - 260 X 2.5 H | 225 | 230 | 90 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 250 255 70 - 290 X 2.5 H | 250 | 255 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 250 255 80 - 290 X 2.5 H | 250 | 255 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 250 255 90 - 290 X 2.5 H | 250 | 255 | 90 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 265 270 60 - 305 X 2.5 H | 265 | 270 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 265 270 70 - 305 X 2.5 H | 265 | 270 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 265 270 80 - 305 X 2.5 H | 265 | 270 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 265 270 90 - 305 X 2.5 H | 265 | 270 | 90 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 285 290 60 - 325 X 2.5 H | 285 | 290 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 285 290 70 - 325 X 2.5 H | 285 | 290 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 285 290 80 - 325 X 2.5 H | 285 | 290 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 285 290 90 - 325 X 2.5 H | 285 | 290 | 90 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 300 305 60 - 340 X 2.5 H | 300 | 305 | 60 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 300 305 70 - 340 X 2.5 H | 300 | 305 | 70 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 300 305 80 - 340 X 2.5 H | 300 | 305 | 80 | Holes | ||
| WMB® CuSn8 Bronze Bearings | Metric | WMBF 300 305 90 - 340 X 2.5 H | 300 | 305 | 90 | Holes |
