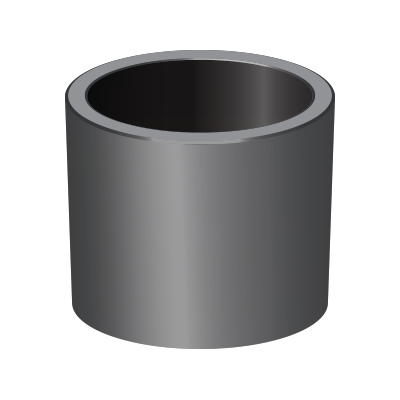

About WMG Plastic Plain Bearings
Our WMG plastic plain bearings are suitable for applications requiring high abrasion resistance, particularly in environments where dust or other particles are a constant problem. The WMG range has a very low level of dynamic friction and almost zero stick-slip characteristics, making it suitable for demanding industrial applications.
WMG bearings are available in metric sizes only. Our in-house machining service can produce non-standard sizes to suit specific customer requirements.
For customers looking for WMG bearings USA, Bowman provides plastic bearing solutions across North America. Whether you need to buy WMG Plastic Bearings North America or are looking for an industrial WMG plastic supplier in the US, Bowman can support your requirements.
The WMG range is also suitable for applications requiring a thermoplastic sleeve bushing. Contact Bowman for more information about WMG plastic plain bearings USA and available sizes.
Matching Bearings
| Material | Unit Measurement | Part Number | Inner Diameter | Outer Diameter | Length | Tolerance Range | Action Button |
|---|---|---|---|---|---|---|---|
| WMG® Plastic Bearings | Metric | WMG 01 03 02 | 1 | 3 | 2 | ||
| WMG® Plastic Bearings | Metric | WMG 02 03 03 | 2 | 3 | 3 | ||
| WMG® Plastic Bearings | Metric | WMG 2.5 04 05 | 2.5 | 4 | 5 | ||
| WMG® Plastic Bearings | Metric | WMG 03 04 03 | 3 | 4 | 3 | ||
| WMG® Plastic Bearings | Metric | WMG 03 04 05 | 3 | 4 | 5 | ||
| WMG® Plastic Bearings | Metric | WMG 03 04 06 | 3 | 4 | 6 | ||
| WMG® Plastic Bearings | Metric | WMG 04 05 04 | 4 | 5 | 4 | ||
| WMG® Plastic Bearings | Metric | WMG 04 05 06 | 4 | 5 | 6 | ||
| WMG® Plastic Bearings | Metric | WMG 04 07 05 | 4 | 7 | 5 | ||
| WMG® Plastic Bearings | Metric | WMG 4.5 06 08 | 4.5 | 6 | 8 | ||
| WMG® Plastic Bearings | Metric | WMG 05 06 05 | 5 | 6 | 5 | ||
| WMG® Plastic Bearings | Metric | WMG 05 06 07 | 5 | 6 | 7 | ||
| WMG® Plastic Bearings | Metric | WMG 05 07 05 | 5 | 7 | 5 | ||
| WMG® Plastic Bearings | Metric | WMG 05 07 08 | 5 | 7 | 8 | ||
| WMG® Plastic Bearings | Metric | WMG 05 07 10 | 5 | 7 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 06 07 06 | 6 | 7 | 6 | ||
| WMG® Plastic Bearings | Metric | WMG 06 07 17.5 | 6 | 7 | 17.5 | ||
| WMG® Plastic Bearings | Metric | WMG 06 08 04 | 6 | 8 | 4 | ||
| WMG® Plastic Bearings | Metric | WMG 06 08 05 | 6 | 8 | 5 | ||
| WMG® Plastic Bearings | Metric | WMG 06 08 5.5 | 6 | 8 | 55 | ||
| WMG® Plastic Bearings | Metric | WMG 06 08 06 | 6 | 8 | 6 | ||
| WMG® Plastic Bearings | Metric | WMG 06 08 08 | 6 | 8 | 8 | ||
| WMG® Plastic Bearings | Metric | WMG 06 08 09 | 6 | 8 | 9 | ||
| WMG® Plastic Bearings | Metric | WMG 06 08 10 | 6 | 8 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 06 08 11 | 6 | 8 | 11 | ||
| WMG® Plastic Bearings | Metric | WMG 06 08 12 | 6 | 8 | 12 | ||
| WMG® Plastic Bearings | Metric | WMG 06 08 13 | 6 | 8 | 13 | ||
| WMG® Plastic Bearings | Metric | WMG 06 08 15 | 6 | 8 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 06 08 25 | 6 | 8 | 25 | ||
| WMG® Plastic Bearings | Metric | WMG 07 08 10 | 7 | 8 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 07 08 19 | 7 | 8 | 19 | ||
| WMG® Plastic Bearings | Metric | WMG 07 09 08 | 7 | 9 | 8 | ||
| WMG® Plastic Bearings | Metric | WMG 07 09 09 | 7 | 9 | 9 | ||
| WMG® Plastic Bearings | Metric | WMG 07 09 10 | 7 | 9 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 07 09 12 | 7 | 9 | 12 | ||
| WMG® Plastic Bearings | Metric | WMG 08 09 05 | 8 | 9 | 5 | ||
| WMG® Plastic Bearings | Metric | WMG 08 09 06 | 8 | 9 | 6 | ||
| WMG® Plastic Bearings | Metric | WMG 08 09 08 | 8 | 9 | 8 | ||
| WMG® Plastic Bearings | Metric | WMG 08 09 12 | 8 | 9 | 12 | ||
| WMG® Plastic Bearings | Metric | WMG 08 10 05 | 8 | 10 | 5 | ||
| WMG® Plastic Bearings | Metric | WMG 08 10 06 | 8 | 10 | 6 | ||
| WMG® Plastic Bearings | Metric | WMG 08 10 07 | 8 | 10 | 7 | ||
| WMG® Plastic Bearings | Metric | WMG 08 10 08 T | 8 | 10 | 8 | ||
| WMG® Plastic Bearings | Metric | WMG 08 10 10 | 8 | 10 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 08 10 12 T | 8 | 10 | 12 | ||
| WMG® Plastic Bearings | Metric | WMG 08 10 13 | 8 | 10 | 13 | ||
| WMG® Plastic Bearings | Metric | WMG 08 10 15 | 8 | 10 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 08 10 16 | 8 | 10 | 16 | ||
| WMG® Plastic Bearings | Metric | WMG 08 10 20 | 8 | 10 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 08 10 22 | 8 | 10 | 22 | ||
| WMG® Plastic Bearings | Metric | WMG 09 11 06 | 9 | 11 | 6 | ||
| WMG® Plastic Bearings | Metric | WMG 10 11 06 | 10 | 11 | 6 | ||
| WMG® Plastic Bearings | Metric | WMG 10 11 10 | 10 | 11 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 10 11 25 | 10 | 11 | 25 | ||
| WMG® Plastic Bearings | Metric | WMG 10 12 04 | 10 | 12 | 4 | ||
| WMG® Plastic Bearings | Metric | WMG 10 12 4.5 | 10 | 12 | 45 | ||
| WMG® Plastic Bearings | Metric | WMG 10 12 05 | 10 | 12 | 5 | ||
| WMG® Plastic Bearings | Metric | WMG 10 12 06 | 10 | 12 | 6 | ||
| WMG® Plastic Bearings | Metric | WMG 10 12 07 | 10 | 12 | 7 | ||
| WMG® Plastic Bearings | Metric | WMG 10 12 08 | 10 | 12 | 8 | ||
| WMG® Plastic Bearings | Metric | WMG 10 12 09 | 10 | 12 | 9 | ||
| WMG® Plastic Bearings | Metric | WMG 10 12 10 | 10 | 12 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 10 12 12 | 10 | 12 | 12 | ||
| WMG® Plastic Bearings | Metric | WMG 10 12 14 | 10 | 12 | 14 | ||
| WMG® Plastic Bearings | Metric | WMG 10 12 15 | 10 | 12 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 10 12 17 | 10 | 12 | 17 | ||
| WMG® Plastic Bearings | Metric | WMG 10 12 20 | 10 | 12 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 12 13 12 | 12 | 13 | 12 | ||
| WMG® Plastic Bearings | Metric | WMG 12 13 15 | 12 | 13 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 12 14 04 | 12 | 14 | 4 | ||
| WMG® Plastic Bearings | Metric | WMG 12 14 05 | 12 | 14 | 5 | ||
| WMG® Plastic Bearings | Metric | WMG 12 14 06 | 12 | 14 | 6 | ||
| WMG® Plastic Bearings | Metric | WMG 12 14 08 | 12 | 14 | 8 | ||
| WMG® Plastic Bearings | Metric | WMG 12 14 10 | 12 | 14 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 12 14 12 | 12 | 14 | 12 | ||
| WMG® Plastic Bearings | Metric | WMG 12 14 14 | 12 | 14 | 14 | ||
| WMG® Plastic Bearings | Metric | WMG 12 14 15 | 12 | 14 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 12 14 20 | 12 | 14 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 12 14 25 | 12 | 14 | 25 | ||
| WMG® Plastic Bearings | Metric | WMG 12 15 06 | 12 | 15 | 6 | ||
| WMG® Plastic Bearings | Metric | WMG 12 15 22 | 12 | 15 | 22 | ||
| WMG® Plastic Bearings | Metric | WMG 12 16 10 | 12 | 16 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 12 16 20 | 12 | 16 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 13 15 07 | 13 | 15 | 70 | ||
| WMG® Plastic Bearings | Metric | WMG 13 15 7.5 | 13 | 15 | 75 | ||
| WMG® Plastic Bearings | Metric | WMG 13 15 10 | 13 | 15 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 13 15 15 | 13 | 15 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 13 15 20 | 13 | 15 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 13 15 25 | 13 | 15 | 25 | ||
| WMG® Plastic Bearings | Metric | WMG 14 16 03 | 14 | 16 | 3 | ||
| WMG® Plastic Bearings | Metric | WMG 14 16 06 | 14 | 16 | 6 | ||
| WMG® Plastic Bearings | Metric | WMG 14 16 08 | 14 | 16 | 8 | ||
| WMG® Plastic Bearings | Metric | WMG 14 16 10 | 14 | 16 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 14 16 12 | 14 | 16 | 12 | ||
| WMG® Plastic Bearings | Metric | WMG 14 16 15 | 14 | 16 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 14 16 20 | 14 | 16 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 14 16 25 | 14 | 16 | 25 | ||
| WMG® Plastic Bearings | Metric | WMG 15 16 15 | 15 | 16 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 15 17 04 | 15 | 17 | 4 | ||
| WMG® Plastic Bearings | Metric | WMG 15 17 10 | 15 | 17 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 15 17 12 | 15 | 17 | 12 | ||
| WMG® Plastic Bearings | Metric | WMG 15 17 15 | 15 | 17 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 15 17 20 | 15 | 17 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 15 17 25 | 15 | 17 | 25 | ||
| WMG® Plastic Bearings | Metric | WMG 16 18 5.5 | 16 | 18 | 55 | ||
| WMG® Plastic Bearings | Metric | WMG 16 18 08 | 16 | 18 | 8 | ||
| WMG® Plastic Bearings | Metric | WMG 16 18 10 | 16 | 18 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 16 18 12 | 16 | 18 | 12 | ||
| WMG® Plastic Bearings | Metric | WMG 16 18 13.5 | 16 | 18 | 13.5 | ||
| WMG® Plastic Bearings | Metric | WMG 16 18 15 | 16 | 18 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 16 18 20 | 16 | 18 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 16 18 25 | 16 | 18 | 25 | ||
| WMG® Plastic Bearings | Metric | WMG 16 18 30 | 16 | 18 | 30 | ||
| WMG® Plastic Bearings | Metric | WMG 16 18 50 | 16 | 18 | 50 | ||
| WMG® Plastic Bearings | Metric | WMG 18 20 10 | 18 | 20 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 18 20 12 | 18 | 20 | 12 | ||
| WMG® Plastic Bearings | Metric | WMG 18 20 15 | 18 | 20 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 18 20 20 | 18 | 20 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 18 20 25 | 18 | 20 | 25 | ||
| WMG® Plastic Bearings | Metric | WMG 18 20 45 | 18 | 20 | 45 | ||
| WMG® Plastic Bearings | Metric | WMG 19 22 06 | 19 | 22 | 6 | ||
| WMG® Plastic Bearings | Metric | WMG 19 22 28 | 19 | 22 | 28 | ||
| WMG® Plastic Bearings | Metric | WMG 19 22 35 | 19 | 22 | 35 | ||
| WMG® Plastic Bearings | Metric | WMG 20 21 20 | 20 | 21 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 20 22 15 | 20 | 22 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 20 22 20 | 20 | 22 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 20 22 22 | 20 | 22 | 22 | ||
| WMG® Plastic Bearings | Metric | WMG 20 22 30 | 20 | 22 | 30 | ||
| WMG® Plastic Bearings | Metric | WMG 20 23 10 | 20 | 23 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 20 23 15 | 20 | 23 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 20 23 20 | 20 | 23 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 20 23 23 | 20 | 23 | 23 | ||
| WMG® Plastic Bearings | Metric | WMG 20 23 24 | 20 | 23 | 24 | ||
| WMG® Plastic Bearings | Metric | WMG 20 23 25 | 20 | 23 | 25 | ||
| WMG® Plastic Bearings | Metric | WMG 20 23 30 | 20 | 23 | 30 | ||
| WMG® Plastic Bearings | Metric | WMG 22 24 10 | 22 | 24 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 22 24 15 | 22 | 24 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 22 24 17 | 22 | 24 | 17 | ||
| WMG® Plastic Bearings | Metric | WMG 22 24 20 | 22 | 24 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 22 24 30 | 22 | 24 | 30 | ||
| WMG® Plastic Bearings | Metric | WMG 22 25 15 | 22 | 25 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 22 25 20 | 22 | 25 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 22 25 25 | 22 | 25 | 25 | ||
| WMG® Plastic Bearings | Metric | WMG 22 25 30 | 22 | 25 | 30 | ||
| WMG® Plastic Bearings | Metric | WMG 24 27 06 | 24 | 27 | 6 | ||
| WMG® Plastic Bearings | Metric | WMG 24 27 15 | 24 | 27 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 24 27 20 | 24 | 27 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 24 27 25 | 24 | 27 | 25 | ||
| WMG® Plastic Bearings | Metric | WMG 24 27 30 | 24 | 27 | 30 | ||
| WMG® Plastic Bearings | Metric | WMG 25 26 25 | 25 | 26 | 25 | ||
| WMG® Plastic Bearings | Metric | WMG 25 28 15 | 25 | 28 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 25 28 20 | 25 | 28 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 25 28 24 | 25 | 28 | 24 | ||
| WMG® Plastic Bearings | Metric | WMG 25 28 25 | 25 | 28 | 25 | ||
| WMG® Plastic Bearings | Metric | WMG 25 28 30 | 25 | 28 | 30 | ||
| WMG® Plastic Bearings | Metric | WMG 25 28 35 | 25 | 28 | 35 | ||
| WMG® Plastic Bearings | Metric | WMG 26 30 16 | 26 | 30 | 16 | ||
| WMG® Plastic Bearings | Metric | WMG 27 30 05 | 27 | 30 | 5 | ||
| WMG® Plastic Bearings | Metric | WMG 28 32 10.5 | 28 | 32 | 10.5 | ||
| WMG® Plastic Bearings | Metric | WMG 28 32 12 | 28 | 32 | 12 | ||
| WMG® Plastic Bearings | Metric | WMG 28 32 15 | 28 | 32 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 28 32 20 | 28 | 32 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 28 32 23 | 28 | 32 | 23 | ||
| WMG® Plastic Bearings | Metric | WMG 28 32 25 | 28 | 32 | 25 | ||
| WMG® Plastic Bearings | Metric | WMG 28 32 30 | 28 | 32 | 30 | ||
| WMG® Plastic Bearings | Metric | WMG 30 31 12 | 30 | 31 | 12 | ||
| WMG® Plastic Bearings | Metric | WMG 30 31 30 | 30 | 31 | 30 | ||
| WMG® Plastic Bearings | Metric | WMG 30 34 15 | 30 | 34 | 15 | ||
| WMG® Plastic Bearings | Metric | WMG 30 34 20 | 30 | 34 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 30 34 24 | 30 | 34 | 24 | ||
| WMG® Plastic Bearings | Metric | WMG 30 34 25 | 30 | 34 | 25 | ||
| WMG® Plastic Bearings | Metric | WMG 30 34 30 | 30 | 34 | 30 | ||
| WMG® Plastic Bearings | Metric | WMG 30 34 35 | 30 | 34 | 35 | ||
| WMG® Plastic Bearings | Metric | WMG 30 34 40 | 30 | 34 | 40 | ||
| WMG® Plastic Bearings | Metric | WMG 30 34 52.5 | 30 | 34 | 52.5 | ||
| WMG® Plastic Bearings | Metric | WMG 32 36 30 | 32 | 36 | 30 | ||
| WMG® Plastic Bearings | Metric | WMG 32 36 40 | 32 | 36 | 40 | ||
| WMG® Plastic Bearings | Metric | WMG 35 39 14 | 35 | 39 | 14 | ||
| WMG® Plastic Bearings | Metric | WMG 35 39 20 | 35 | 39 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 35 39 25 | 35 | 39 | 25 | ||
| WMG® Plastic Bearings | Metric | WMG 35 39 30 | 35 | 39 | 30 | ||
| WMG® Plastic Bearings | Metric | WMG 35 39 40 | 35 | 39 | 40 | ||
| WMG® Plastic Bearings | Metric | WMG 35 39 50 | 35 | 39 | 50 | ||
| WMG® Plastic Bearings | Metric | WMG 36 40 20 | 36 | 40 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 37 41 20 | 37 | 41 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 40 44 10 | 40 | 44 | 10 | ||
| WMG® Plastic Bearings | Metric | WMG 40 44 16 | 40 | 44 | 16 | ||
| WMG® Plastic Bearings | Metric | WMG 40 44 20 | 40 | 44 | 20 | ||
| WMG® Plastic Bearings | Metric | WMG 40 44 30 | 40 | 44 | 30 | ||
| WMG® Plastic Bearings | Metric | WMG 40 44 40 | 40 | 44 | 40 | ||
| WMG® Plastic Bearings | Metric | WMG 40 44 50 | 40 | 44 | 50 |
Frequently Asked Questions
If the answer to your question is not listed below, please feel free to give us a call directly on +1 (0) 419 830 2230 or email us on sales@bowmanbearingtech.com.
What is a WMG plastic bearing?
A WMG plastic bearing is a thermoplastic plain bearing designed for applications requiring high abrasion resistance, particularly where dust or other particles are a constant problem. The range also has very low dynamic friction and almost zero stick-slip characteristics.
What thermoplastic material is used?
WMG bearings are made from a thermoplastic material, but the specific material type is not stated in the available product information. Contact Bowman for material specifications and application guidance.
In what industries are WMG bearings used?
WMG bearings are suitable for industrial applications where high abrasion resistance is required, particularly in environments with dust or other particles. They can be considered for applications across industries with these operating conditions.
What sizes are available?
WMG plain bearings are available in metric sizes only. Bowman’s in-house machining service can also produce non-standard sizes to suit specific customer requirements.
How do I request a quote?
Provide the required dimensions, quantity, and application details when requesting a quote. Bowman can support customers looking for WMG bearings USA, including those looking to buy WMG Plastic bearings North America. As an industrial WMG plastic supplier US, Bowman can also advise on suitable options.
