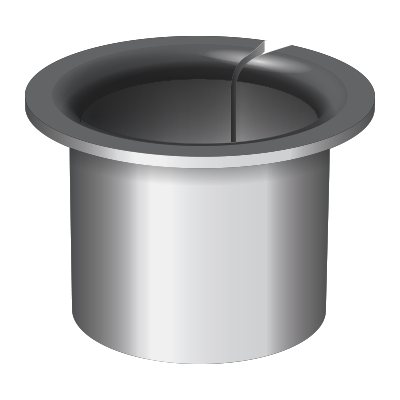

About WMU PTFE Flanged Bearings
Our WMU PTFE flanged bearings are designed for dry-running applications where low friction and minimal wear are essential. The PTFE-lined wrapped construction provides a reliable, low-maintenance bearing solution for a wide range of industrial applications.
WMU bearings are available in standard metric and inch sizes, while our in-house machining service can produce non-standard sizes to meet specific customer requirements. The flanged design also provides additional positioning and support where required within an assembly.
As an industrial WMU PTFE supplier in the US, we support customers looking to buy WMU PTFE bearings in North America, providing suitable solutions for applications requiring reliable dry-running performance.
Matching Bearings
| Material | Unit Measurement | Part Number | Inner Diameter | Outer Diameter | Length | Backing Material | Tolerance Range | Action Button |
|---|---|---|---|---|---|---|---|---|
| WMU® PTFE Lined Bearings | Metric | WMUF 03 4.5 04 - 07 X 0.75 | 3 | 4.5 | 4 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 04 5.5 04 - 09 X 0.75 | 4 | 5.5 | 4 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 05 07 05 - 10 X 1 | 5 | 7 | 5 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 06 08 04 - 12 X 1 | 6 | 8 | 4 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 06 08 07 - 12 X 1 | 6 | 8 | 7 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 06 08 08 - 12 X 1 | 6 | 8 | 8 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 08 10 5.5 - 15 X 1 | 8 | 10 | 5.5 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 08 10 7.5 - 15 X 1 | 8 | 10 | 7.5 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 08 10 9.5 - 15 X 1 | 8 | 10 | 9.5 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 10 07 18 | 10 | 12 | 7 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 10 12 09 - 18 X 1 | 10 | 12 | 9 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 10 12 12 - 18 X 1 | 10 | 12 | 12 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 10 12 17 - 18 X 1 | 10 | 12 | 17 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 12 14 07 - 20 X 1 | 12 | 14 | 7 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 12 14 09 - 20 X 1 | 12 | 14 | 9 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 12 14 12 - 20 X 1 | 12 | 14 | 12 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 12 14 17 - 20 X 1 | 12 | 14 | 17 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 14 16 12 - 22 X 1 | 14 | 16 | 12 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 14 16 17 - 22 X 1 | 14 | 16 | 17 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 15 17 09 - 23 X 1 | 15 | 17 | 9 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 15 17 12 - 23 X 1 | 15 | 17 | 12 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 15 17 17 - 23 X 1 | 15 | 17 | 17 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 16 18 12 - 24 X 1 | 16 | 18 | 12 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 16 18 17 - 24 X 1 | 16 | 18 | 17 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 18 20 12 - 26 X 1 | 18 | 20 | 12 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 18 20 17 - 26 X 1 | 18 | 20 | 17 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 18 20 22 - 26 X 1 | 18 | 20 | 22 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 20 23 11.5 - 30 X 1.5 | 20 | 23 | 11.5 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 20 23 16.5 - 30 X 1.5 | 20 | 23 | 16.5 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 20 23 21.5 - 30 X 1.5 | 20 | 23 | 21.5 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 25 28 11.5 - 35 X 1.5 | 25 | 28 | 11.5 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 25 28 16.5 - 35 X 1.5 | 25 | 28 | 16.5 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 25 28 21.5 - 35 X 1.5 | 25 | 28 | 21.5 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 30 34 16 - 42 X 2 | 30 | 34 | 16 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 30 34 26 - 42 X 2 | 30 | 34 | 26 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 35 39 16 - 47 X 2 | 35 | 39 | 16 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 35 39 26 - 47 X 2 | 35 | 39 | 26 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 40 44 16 - 53 X 2 | 40 | 44 | 16 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 40 44 26 - 53 X 2 | 40 | 44 | 26 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 45 50 16 - 58 X 2.5 | 45 | 50 | 16 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 45 50 26 - 58 X 2.5 | 45 | 50 | 26 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 50 55 20 - 65 X 2.5 | 50 | 55 | 20 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 50 55 30 - 65 X 2.5 | 50 | 55 | 30 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 50 55 40 - 65 X 2.5 | 50 | 55 | 40 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 50 55 50 - 65 X 2.5 | 50 | 55 | 50 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 50 55 60 - 65 X 2.5 | 50 | 55 | 60 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 55 60 30 - 70 X 2.5 | 55 | 60 | 30 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 55 60 40 - 70 X 2.5 | 55 | 60 | 40 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 55 60 60 - 70 X 2.5 | 55 | 60 | 60 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 60 65 30 - 75 X 2.5 | 60 | 65 | 30 | Standard Steel | ||
| WMU® PTFE Lined Bearings | Metric | WMUF 60 65 60 - 75 X 2.5 | 60 | 65 | 60 | Standard Steel |
Frequently Asked Questions
What is a WMU PTFE flanged bearing?
A WMU PTFE flanged bearing is a wrapped plain bearing with a PTFE lining and integrated flange. It is designed for applications requiring low friction and low wear, with the flange providing additional positioning and support within the assembly.
Can WMU PTFE flanged bearings run dry?
Yes. WMU bearings are designed for dry-running applications, making them suitable where continuous lubrication is not practical or required. Their PTFE-lined surface provides low-friction performance while helping minimize wear.
When should WMU PTFE flanged bearings be greased?
WMU PTFE flanged bearings are designed for dry running and generally do not require continuous grease lubrication. Whether additional lubrication is appropriate depends on the specific application, operating conditions, and bearing requirements.
What sizes are available?
WMU PTFE bearings are available in standard metric and inch sizes. Our in-house machining service can also produce non-standard sizes to meet specific customer requirements.
How do I request a quote?
Provide your required dimensions, quantity, application details, operating conditions, and any specific requirements when requesting a quote. As an industrial WMU PTFE supplier in the US, we support customers looking to buy WMU PTFE bearings in North America and can recommend a suitable solution for your application.
