BOWMAN'S WMUB® PTFE LINED BEARINGS: HIGH-PERFORMANCE, DRY-RUNNING APPLICATIONS

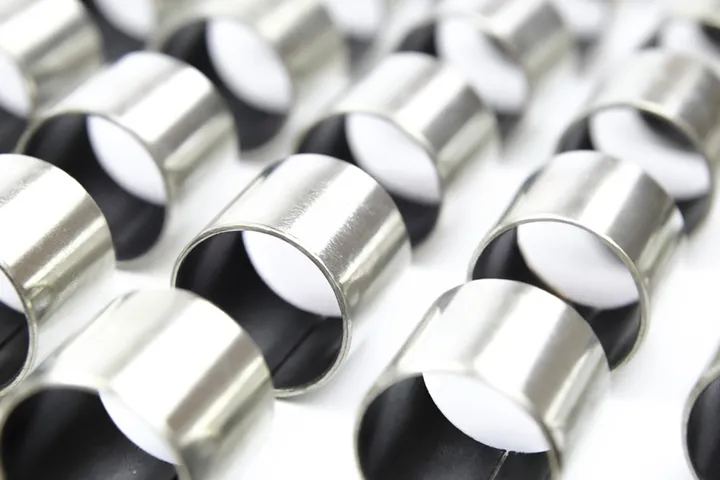

Bowman’s WMUB® bearings are high-performance bronze backed PTFE bearings engineered for dry-running applications where low friction, excellent wear resistance, and long service life are essential. Manufactured using a bronze backing wrapped bearing construction with a premium PTFE sliding layer, these PTFE lined bronze backed bushings create a protective transfer film on the mating surface, reducing friction and extending component life without the need for external lubrication.
Our bronze backed self lubricating bearings are designed to perform reliably under demanding operating conditions across industries including automotive, hydraulics, material handling, construction equipment, and precision engineering. The wrapped construction provides excellent load capacity, dimensional stability, and resistance to wear, making WMUB® bearings suitable for oscillating, reciprocating, and rotary motion applications.
As a trusted bronze backed strip bearing manufacturer, Bowman offers an extensive range of standard metric and imperial sizes, along with bespoke solutions to meet unique application requirements. For environments where carbon steel is unsuitable, we also manufacture the WMU-SS range featuring a bronze or stainless-steel backing strip, providing enhanced corrosion resistance while maintaining the same low-friction PTFE performance.
Whether you require standard components or are looking for a reliable bronze backing PTFE bushing supplier, Bowman delivers precision-engineered solutions for customers worldwide, including those seeking wrapped bronze PTFE bearings in the USA and other global markets.
WMUB® PTFE Lined Specifications
| Structure | CuSn8 backing strip with sintered bronze & PTFE layers. |
|---|---|
| Max PV – Dry (N/mm² x m/s) | 1.8 |
| Max PV – Oiled (N/mm² x m/s) | 2.8 |
| Max Static load (N/mm²) | 250 |
| Max Dynamic load (N/mm²) | 140 |
| Max Sliding speed – Dry (m/s) | 2.5 |
| Max Sliding speed – With Oil (m/s) | 5 |
| Operating temperature (°C) | -200 to 280 |
| Thermal Conductivity (W/mk) | 42 |
| Coefficient of friction – Dry | 0.02 to 0.20 |
| Coefficient of friction – With Oil | 0.02 to 0.15 |
| Recommended shaft finish (Ra) | 0.04 max (N5) |
| Recommended shaft hardness (HB) | 200 min |
Discover the Wrapped PTFE Lined Series
Select a product below to view dimensions, specifications and technical data.
Explore the Arvis Plain Bearings range with detailed product information and downloadable PDF resources.
The Key Strengths of the WMUB® Bearings
Bowman's WMUB® bronze backed PTFE bearings are engineered to deliver reliable, maintenance-free performance in demanding industrial environments. Combining a robust bronze backing with a low-friction PTFE sliding layer, these self-lubricating wrapped bearings are designed to reduce wear, minimise maintenance requirements, and improve equipment efficiency. Their ability to operate without external lubrication makes them ideal for applications where conventional greased bearings are impractical or difficult to maintain. Whether subjected to high loads, oscillating movement, or continuous sliding motion, WMUB® bearings provide consistent performance and long service life. From automotive and hydraulic systems to construction equipment and precision machinery, their combination of durability, load-bearing capability, and corrosion resistance makes them a trusted solution for engineers seeking dependable plain bearing performance.
Low Friction Power
Designed with advanced low-friction properties to reduce energy loss and enhance efficiency.
Durable Sliding Action
Provides smooth, consistent sliding motion with minimal wear for extended reliability.
Exceptional Load Capacity
Engineered to support high radial and axial loads without compromising performance.
Corrosion-Resistant Coating
Equipped with a protective coating to resist rust, chemicals, and harsh environments.
Long-lasting Performance
Combines robust construction and superior materials to ensure extended operational life.
Frequently Asked Questions
What are Bowman WMUB® Bearings?
Bowman WMUB® bearings are high-performance bronze backed PTFE bearings designed for dry-running and maintenance-free applications. Manufactured using a bronze backing wrapped bearing construction with a low-friction PTFE sliding layer, they provide excellent wear resistance, high load capacity, and long service life. These self-lubricating bearings reduce maintenance requirements while delivering reliable performance in demanding industrial environments.
Which industries use WMUB® Bearings?
Bowman PTFE lined bronze backed bushings are widely used across industries including automotive, hydraulics, construction equipment, agricultural machinery, material handling, marine, and precision engineering. Their low-friction characteristics, excellent wear resistance, and ability to operate without external lubrication make them ideal for applications involving oscillating, reciprocating, and rotary motion.
Can I get WMUB® Bearings customised to my specification?
Yes. As a leading bronze backed strip bearing manufacturer, Bowman offers custom WMUB® bearings to suit specific operating conditions and equipment requirements. We can manufacture bespoke dimensions, tolerances, backing materials, and configurations to meet the exact needs of your application while maintaining the performance benefits of our bronze backed self lubricating bearings.
Which materials and sizes are available for WMUB® Bearings?
Our standard WMUB® range is manufactured with a bronze backing and a PTFE-lined sliding surface, available in a comprehensive range of metric and imperial sizes. We also offer the WMU-SS range with bronze or stainless-steel backing strips for applications requiring enhanced corrosion resistance. Custom sizes and configurations are available upon request for specialised applications.
How do I request a quote for WMUB® Bearings?
If you're looking for a trusted bronze backing PTFE bushing supplier, simply contact Bowman with your bearing dimensions, operating conditions, load requirements, and application details. Our engineering team will recommend the most suitable solution, whether you require standard products or custom-manufactured wrapped bronze PTFE bearings for projects in the USA or worldwide.
Looking for a custom size or special specifications?
Whether you need standard or custom options, we’re here to help. Reach out now and let’s find the perfect match!
